EGAMI 10.5 Image for Vu+ Ultimo 4K: Download, Features, Flashing & Multiboot Setup Guide

The EGAMI 10.5 firmware is one of the most refined, feature-rich Linux Enigma2 operating systems available for the flagship Vu+ Ultimo 4K satellite receiver. Built on the modern OE-Alliance Python 3 core, EGAMI combines high-level interface aesthetics with powerful background features, including EGAMI Boot Control (Native Multiboot), a built-in Softcam Manager, and optimized GStreamer/exteplayer3 streaming performance.









1. Why Download EGAMI 10.5 for Vu+ Ultimo 4K?

The Vu+ Ultimo 4K features a high-performance Broadcom BCM7252S dual-core 1.7GHz ARM processor, 3GB DDR4 RAM, 4GB eMMC flash memory, triple tuner slots (FBC DVB-S2X / DVB-C), and a large 4.0" color LCD display. EGAMI 10.5 takes full advantage of this hardware platform:

[Satellite / Cable / IPTV Signal] ──► [Vu+ Ultimo 4K Tuners]
                                              │
                                              ▼
[EGAMI 10.5 Python 3 OS Core] ──► [EGAMI Boot Control (Multiboot)]
                                              │
                                              ▼
[exteplayer3 / GStreamer 1.22+] ──► [4K HDR10 / 2160p 60Hz Display]



• EGAMI Boot Control (Native Multiboot): Run EGAMI 10.5 in flash while running up to 16 secondary Enigma2 images (such as OpenATV, VTi, or BlackHole) directly from an internal SSD/HDD or high-speed USB flash drive.

• Python 3 Speed & Plugin Support: Provides snappy menu navigation, instant skin rendering, and seamless compatibility with modern Python 3 extensions like E2iPlayer, Xstreamity, and AJPanel.

• Integrated Softcam Manager: Built-in cam setup tool for controlling OSCam, NCam, and CCcam directly from the remote control without installing third-party panels.

• Custom LCD MiniTV Rendering: Native configuration for the Ultimo 4K front 4.0" LCD display, supporting high-resolution picons, extended channel info, and weather widgets.



2. Firmware Download & Package Information

When preparing to flash your box, make sure to use the correct image zip file corresponding to the Ultimo 4K ARM architecture:

Receiver Model	SoC Architecture	Flash / RAM	Download Firmware Attachment Package
Vu+ Ultimo 4K	Broadcom BCM7252S (ARM)	4GB eMMC / 3GB DDR4	egami-10.5-r1-vuultimo4k-20240125_usb.zip

(The firmware package file is available for direct download in the attachments section at the bottom of this thread.)



3. Step-by-Step USB Flashing & Multiboot Setup

Follow this sequence to flash EGAMI 10.5 directly to the receiver's main eMMC flash memory using a USB drive.

1.Prepare FAT32 USB Flash Drive :

Prepares flash drive for Vu+ bootloader recognition.

Format an 8GB or 16GB USB drive using the FAT32 filesystem with a 4096-byte cluster size.

2.Unpack Firmware Files :

Extract attachment package to USB root.

Unzip the downloaded egami-10.5.r1-vuultimo4k-usb.zip attachment package directly to the root directory of your USB drive.

• Verify that the folder structure reads: USB_ROOT/vuplus/ultimo4k/ containing files like rootfs.tar.bz2, kernel_auto.bin, and initrd_auto.bin.

3.Flash Receiver via Front USB Port :

Initiates cold boot flashing procedure.

1. Turn off your Vu+ Ultimo 4K using the rear power switch.

2. Plug the USB drive into the front panel USB port behind the front flap.

3. Power on the receiver. When the 4.0" LCD display prompts "Image detected - Press Power Button", press the front standby touch sensor to start flashing.

4. Wait until the display reads Flashing Complete - Rebooting.

4.Complete Initial Setup :

First boot configuration wizard.

Follow the onscreen initial wizard to configure video output (2160p @ 60Hz), setup network connections, scan satellite transponders, and restore any previous bouquet backups.



4. Softcam & IPTV Configuration Tips

A. Activating Softcams in EGAMI

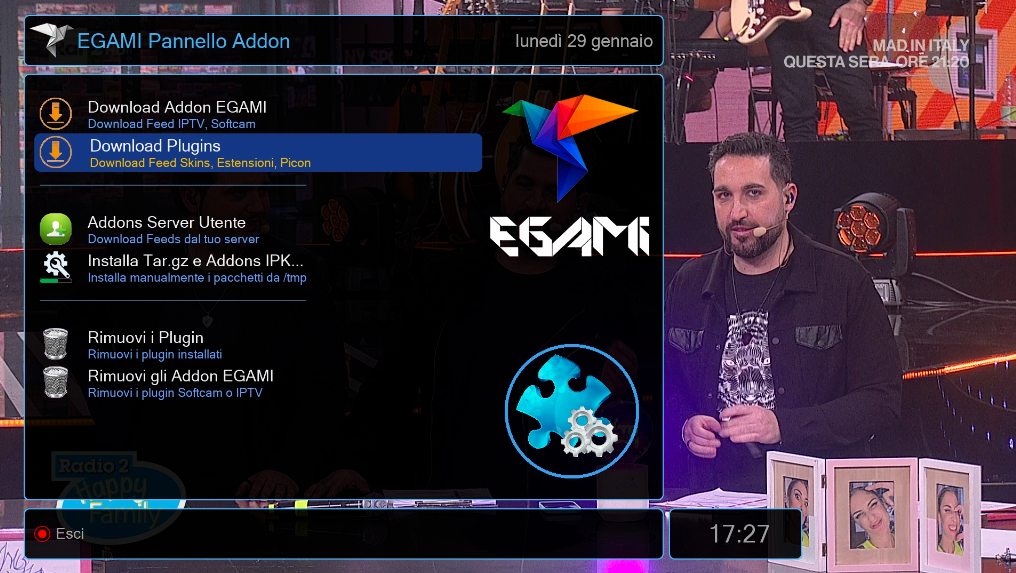

1. Press the Green Button or navigate to Menu > EGAMI Panel > Softcam Panel.

2. Press Yellow (Download Cams) to fetch Python 3 compatible OSCam or NCam packages.

3. Transfer your server settings (oscam.server or ncam.server) via FTP to /etc/tuxbox/config/.

4. Return to the Softcam Panel, select your installed cam, and press Green (Start/Restart).

B. Optimizing IPTV Performance with ServiceApp

To eliminate buffering and ensure smooth playback of 4K H.265/HEVC streams:

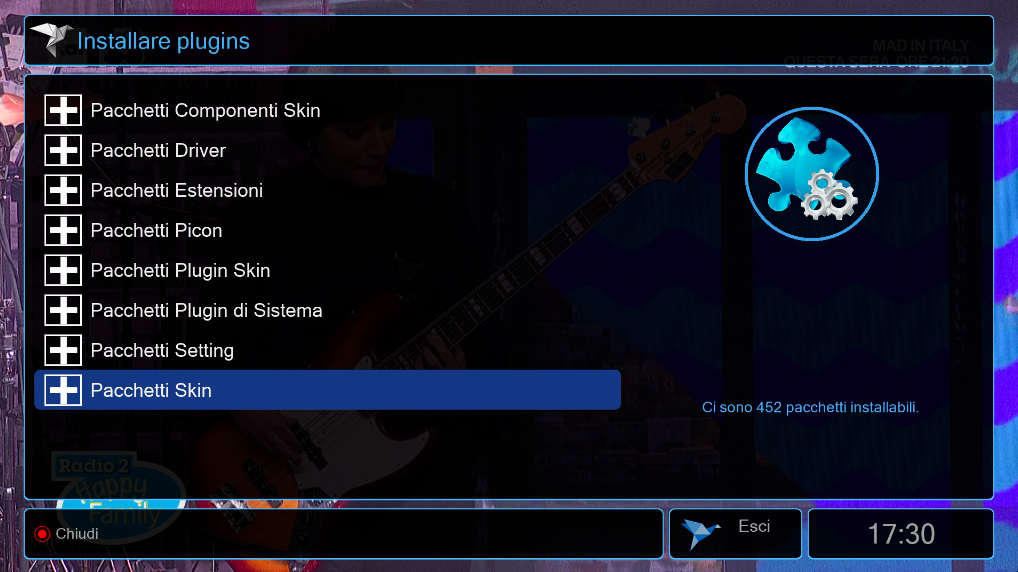

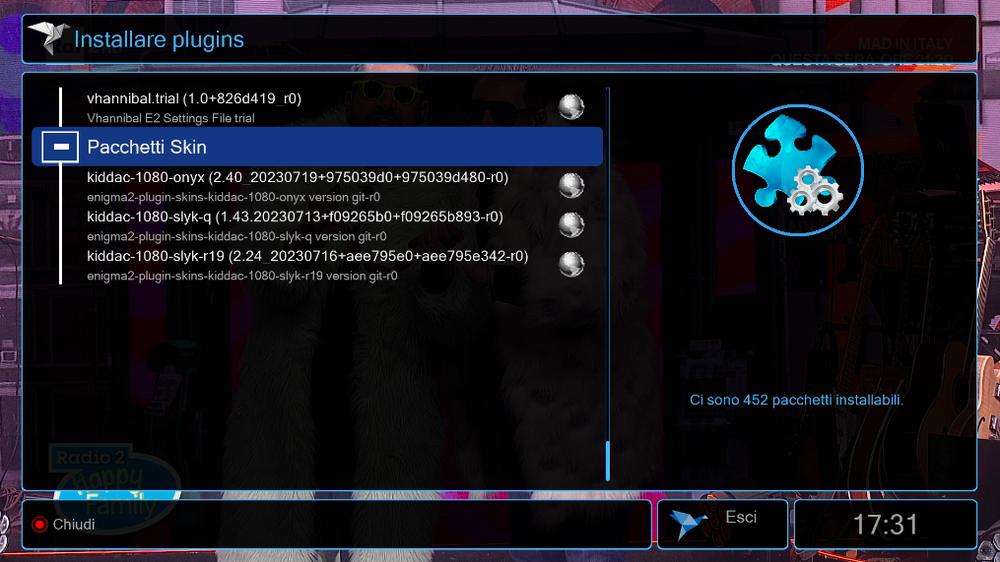

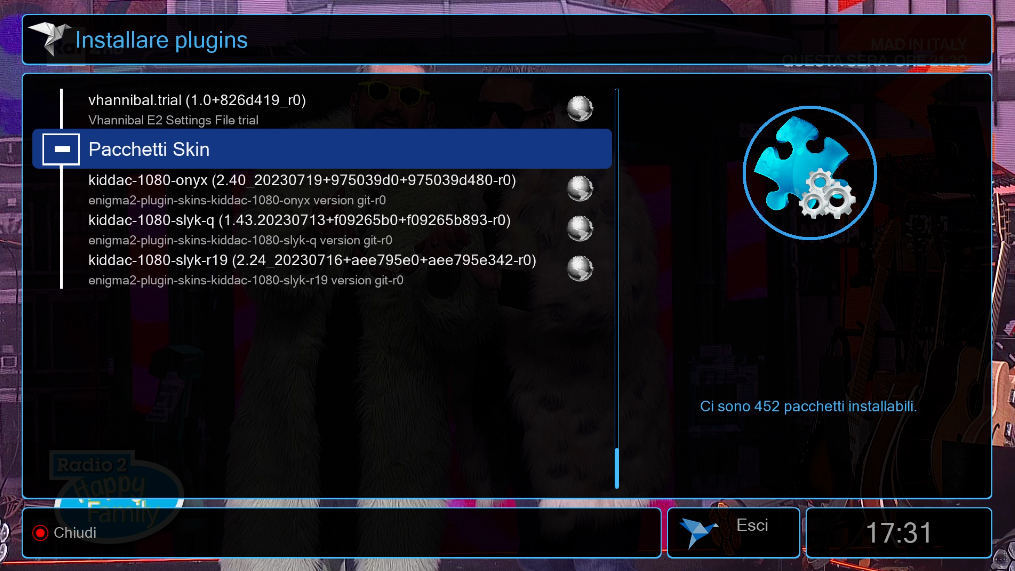

• Go to Plugins > Download Plugins > Systemplugins and install serviceapp.

• Go to Menu > Setup > Usage & GUI > ServiceApp.

• Change Enigma2 Playback System from GStreamer to serviceapp.

• Set Player Service Architecture to exteplayer3.

• Save settings and restart Enigma2.



Frequently Asked Questions (FAQ)

Q1: Can I use EGAMI Boot Control to install VTi or OpenATV on my Vu+ Ultimo 4K?

A: Yes. EGAMI Boot Control allows you to install multiple Enigma2 images onto a USB or internal HDD/SSD partition while keeping EGAMI 10.5 in main flash as your primary image manager.

Q2: Does EGAMI 10.5 support official CI+ modules?

A: Yes, EGAMI includes CI+ Helper auto-assignment support, enabling full compatibility with official pay-TV provider modules.

Q3: What should I do if the box doesn't detect the USB flash drive during startup?

A: Ensure the USB drive is 32GB or smaller, formatted to FAT32, and plugged into the front USB 2.0 port behind the flap, as rear USB 3.0 ports are sometimes initialized after the bootloader check.
