VTi 15.0.4 Image for Vu+ Receivers: Features, Compatibility & ICAM Setup (2026)

The VTi (Vu+ Team Image) 15.0.4 firmware remains the ultimate closed-source, driver-level operating system built exclusively for Vu+ Linux receivers. Unlike alliance-based open-source images (such as OpenATV or OpenPLi), VTi is developed directly on Vu+'s official kernel sources and proprietary Broadcom hardware drivers.

This deep integration makes VTi 15.0.4 the most stable platform for running FCC (Fast Channel Change), dual FBC (Full Band Capture) satellite tuners, and ICAM (OSCam Stream Relay) decryption for high-tier satellite broadcasts like Sky Germany (Astra 19.2°E).









1. Why Choose VTi 15.0.4 for Vu+ Receivers?

Because VTi utilizes proprietary Vu+ hardware driver calls directly rather than generic wrapper layers, it delivers key performance advantages over open-source alternatives:



[Satellite Signal (DVB-S2X)] ──► [Vu+ FBC Hardware Tuner]
                                         │
                                         ▼
[VTi 15.0.4 Kernel Drivers] ──► [OSCam ICAM Stream Relay (Port 17999)]
                                         │
                                         ▼
[Hardware Video Decoder (Broadcom SoC)] ──► [4K HDR Display (0.2s Zapping)]



• Instantaneous FCC (Fast Channel Change): Pre-buffers adjacent satellite channels on background FBC tuners, enabling channel zapping times under 0.2 seconds.

• Native ICAM Stream Relay Integration: Handles internal loopback routing (127.0.0.1:17999) for CSA3/ICAM encrypted broadcasts without CPU bottlenecking or audio sync drift.

• Native VTi VBC/CI+ Manager: Full official CI+ module auto-assignment support for pay-TV conditional access modules.

• Optimized Memory Allocation: Maintains low system RAM usage (~180MB at idle), leaving ample RAM for EPG caching and recording buffering.



2. Vu+ Model Compatibility & Image Files

Always select the specific firmware file corresponding to your exact receiver model. Flashing an incorrect VTi image build will halt the bootloader process.

Vu+ 4K ARM Models

1. VTi_15-0-04_vuduo2_202507160733_usb.zip
2. VTi_15-0-04_vuduo4k_202507160625_usb.zip
3. VTi_15-0-04_vuduo4kse_202507160616_usb.zip
4. VTi_15-0-04_vusolo2_202507160735_usb.zip
5. VTi_15-0-04_vusolo4k_202507160721_usb.zip
6. VTi_15-0-04_vusolose_202507160737_usb.zip
7. VTi_15-0-04_vuultimo4k_202507160654_usb.zip
8. VTi_15-0-04_vuuno4k_202507160702_usb.zip
9. VTi_15-0-04_vuuno4kse_202507160634_usb.zip
10. VTi_15-0-04_vuzero_202507160739_usb.zip

11. VTi_15-0-04_vuzero4k_202507160645_usb.zip

3. Step-by-Step USB Flashing & ICAM Configuration

Follow this procedure to flash VTi 15.0.4 onto your receiver using the attached firmware file and configure the OSCam-ICAM stream relay service.

1.Prepare FAT32 USB Flash Drive :

Required for Vu+ hardware bootloader.

Format an 8GB or 16GB USB drive using the FAT32 filesystem on your PC.



2.Extract VTi 15.0.4 Image File :

Preserves required firmware folder hierarchy.

Unzip your downloaded VTi zip package directly to the root of your USB drive.

• Verify that the directory structure reads: USB_ROOT/vuplus/YOUR_MODEL_NAME/ containing core system files (rootfs.tar.bz2, kernel_auto.bin).



3.Flash Receiver via Front USB Port :

Triggers cold-boot flashing sequence.

1. Turn off your Vu+ box via the rear power switch.

2. Plug the USB drive into the front panel USB port.

3. Power on the rear switch. When prompted on the LCD display ("Image detected - Press Power Button"), touch the standby button to initiate flashing.



4.Install OSCam ICAM IPK Package :

Enables OSCam ICAM decryption feed.

1. Obtain the latest enigma2-plugin-softcams-oscam-icam-vti_all.ipk.

2. Transfer the IPK file to your box's /tmp/ folder via FTP (FileZilla).

3. On your Vu+ remote, press Blue Button > VTi Software Manager > Install local packages > /tmp and execute the installation.



5.Import ICAM Bouquet & Configure Stream Relay :

Reroutes encrypted channels to local stream relay.

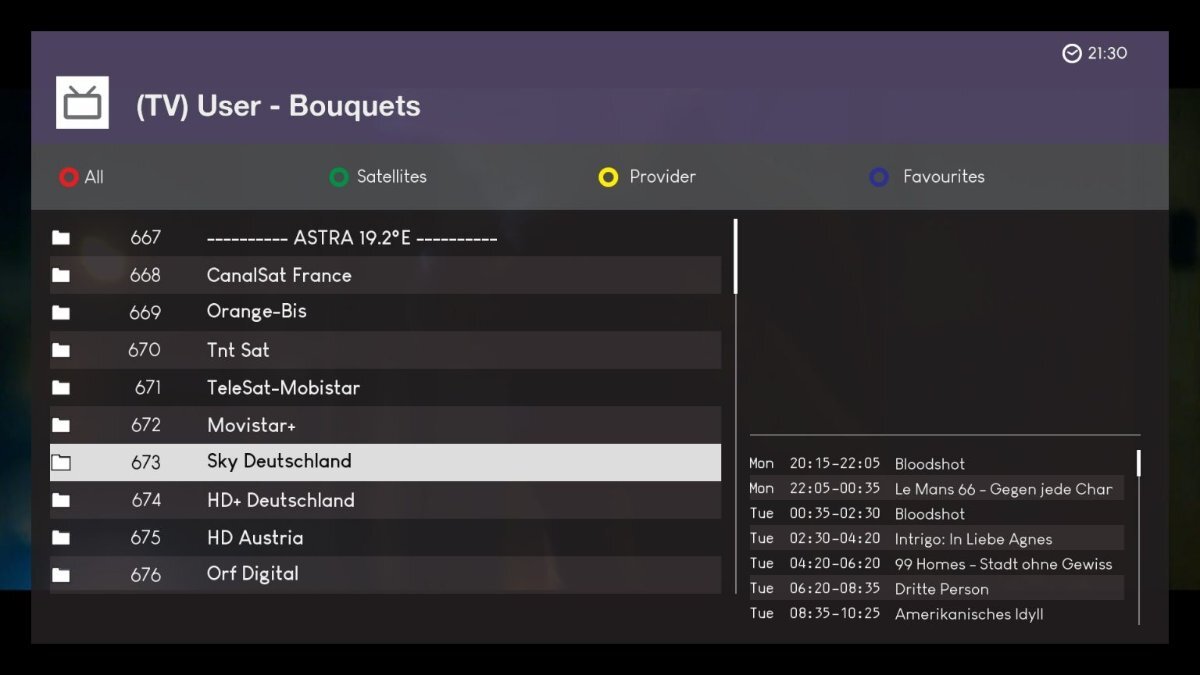

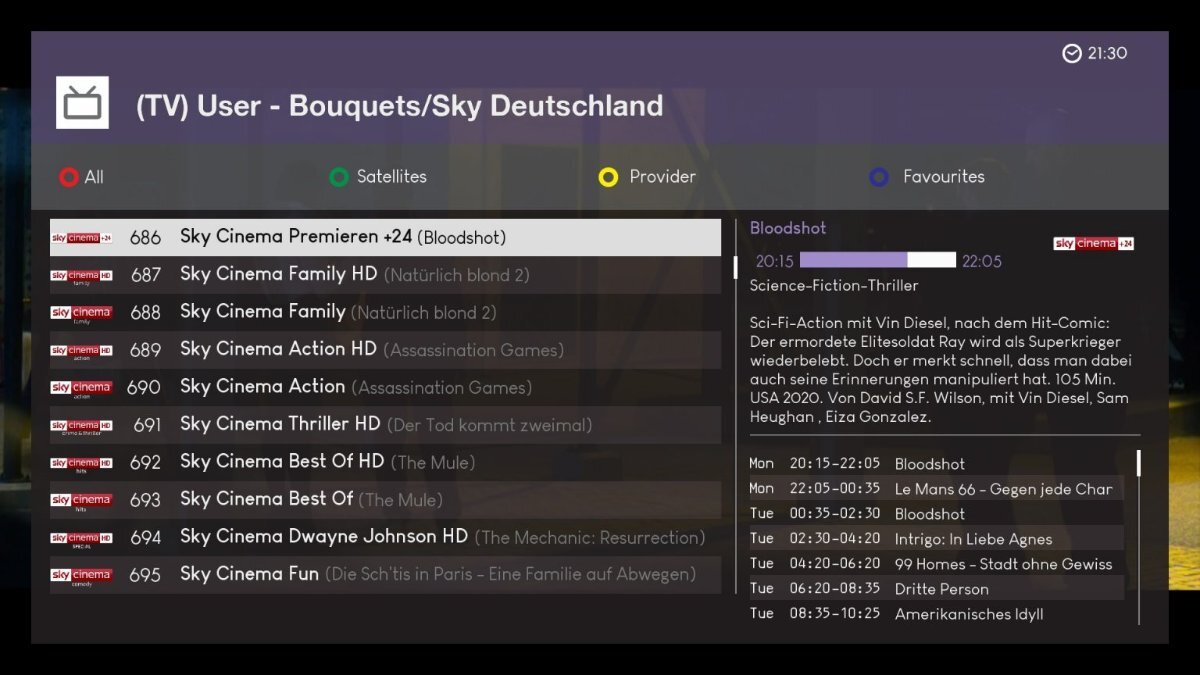

1. Import the Sky DE ICAM channel bouquet (userbouquet.sky_icam.tv) into /etc/enigma2/ using E-Channelizer or DemonEditor.

2. Go to Menu > Setup > VTi > Setup - VTi Customization.

3. Set Include HTTP streams in service list to YES.

4. Set Stream Relay Port to 17999.



4. Critical System Tweaks for VTi 15.0.4 & ICAM

A. Resolve Conflict Between Fast Channel Change (FCC) & ICAM

VTi's FCC plugin attempts to pre-tune background satellite channels. However, when tuning into ICAM stream relay channels, FCC can lock up the DVB-API demuxer, resulting in a permanent black screen.

• Fix: Go to Menu > Setup > VTi > Fast Channel Change Settings.

• Set Enable FCC to YES, but under Exclude Bouquets, select your Sky DE ICAM Bouquet.

• This keeps ultra-fast 0.2s zapping active for normal satellite channels while preventing tuner conflicts on ICAM channels.



B. OSCam ICAM Configuration Files Location

When configuring your line or server settings, transfer your configuration files to the following VTi system paths:

• Config Files Directory: /etc/tuxbox/config/ (or /etc/tuxbox/config/oscam-icam/)

• Files Needed: oscam.conf, oscam.server, oscam.user, oscam.dvbapi, oscam.streamrelay

• Cam Start/Stop Control: Press Blue Button > VTi Cam Center on your remote to start or set OSCam ICAM as default on boot.



Frequently Asked Questions (FAQ)

Q1: Why do ICAM channels show a black screen despite OSCam being active?

A: This usually happens if HTTP stream integration is disabled in VTi settings, or if the stream relay port in oscam.conf ([streamrelay] stream_relay_port = 17999) does not match the port set in your bouquet links ([http://127.0.0.1:17999/](http://127.0.0.1:17999/)).

Q2: Is VTi 15.0.4 compatible with non-Vu+ receivers like Zgemma or Octagon?

A: No. VTi is strictly proprietary software compiled exclusively for Vu+ hardware platforms. Installing it on non-Vu+ hardware is impossible.

Q3: Where can I find VTi crash logs if a Green Screen (GS) occurs?

A: VTi saves all system crash logs directly in /media/hdd/ or /tmp/. You can download these .log files via FTP to inspect plugin exceptions.
