OpenBH 6.0 Image for Vu+ Receivers: Official Download Links, USB Flashing & IPTV Setup (2026)

Downloading the correct image build directly from verified sources is essential to prevent bricking or getting stuck in a bootloop on your Vu+ receiver's onboard eMMC flash.

Built on the updated OE-Alliance framework with full Python 3 compatibility and the GStreamer 1.22+ media engine, OpenBH 6.0 (OpenBlackHole) provides ultra-fast channel zapping, improved RAM management, and stutter-free IPTV playback across all supported Vu+ 4K and HD models.









1. Official OpenBH 6.0 Image Download Links

Always select the image compiled specifically for your exact receiver model. Flashing a build intended for a different model will result in a hardware boot halt.

Vu+ 4K Models (ARM Architecture)

openbh-6.0.001.release-vuuno4kse-8c6baf54_usb.zip

openbh-6.0.001.release-vuduo4kse-8c6baf54_usb.zip

openbh-6.0.001.release-vusolo4k-8c6baf54_usb.zip

openbh-6.0.001.release-vuuno4k-8c6baf54_usb.zip

openbh-6.0.001.release-vuduo4k-8c6baf54_usb.zip

openbh-6.0.001.release-vuultimo4k-8c6baf54_usb.zip

openbh-6.0.001.release-vuzero4k-8c6baf54_usb.zip



2. Step-by-Step USB Flashing Procedure

1.Prepare USB Drive (FAT32) :

Formats the drive for Vu+ bootloader recognition.

Take a standard USB 2.0 or 3.0 flash drive (8GB to 32GB capacity) and format it on your PC using the FAT32 filesystem. Do not use NTFS or exFAT, as the Vu+ bootloader will ignore the drive.



2.Extract Zip Files to USB :

Preserves exact folder tree structure.

Download the zip archive matching your specific model and extract its contents directly to the root directory of your formatted USB drive.

• Confirm that the folder path on your USB drive reads: USB_ROOT/vuplus/YOUR_MODEL_NAME/ containing core system binaries such as rootfs.tar.bz2 and kernel_auto.bin.



3.Connect USB & Cold Power Cycle :

Cold boot requirement for image detection.

1. Turn off your Vu+ box completely using the rear hardware power switch.

2. Insert the USB drive into the front panel USB port (or rear port if no front USB port exists).

3. Power on the rear switch while observing the front display panel.



4.Confirm Flash & Boot Setup :

Triggers automated firmware installation.

• LCD Screen Models (Duo 4K SE, Ultimo 4K, Uno 4K SE): When the front screen displays "Image detected - Press Power Button", press the front standby button sensor within 5 seconds.

• Vu+ Zero 4K: The front white LED logo will slowly pulse in and out during the flashing process.

• Once completed, the screen will read "Flashing Complete" or reboot automatically. Remove the USB drive immediately so the box boots into the OpenBH 6.0 First-Time Setup Wizard.



3. Essential Post-Installation Commands (IPTV & Plugins)

Once your receiver completes first-time setup, connect via SSH/Telnet using PuTTY or Terminal (User: root, Password: empty or root) to execute these performance scripts:

[SSH Connection: 192.168.X.X] ───► [Terminal Commands] ───► [Enigma2 Feed Engine]
                                                                  │
                                                                  ├─► Install ServiceApp (exteplayer3)
                                                                  ├─► Install Xstreamity IPTV Plugin
                                                                  └─► Deploy OSCam / NCam Configurations





A. Install ServiceApp & exteplayer3 (Fix IPTV Buffer & Audio Lag)

Replaces the standard Enigma2 media pipeline with FFmpeg hardware acceleration:

Bash



opkg update && opkg install enigma2-plugin-systemplugins-serviceapp ffmpeg exteplayer3

• Activation: On your remote, navigate to Menu > Setup > System > ServiceApp. Toggle Enigma2 Service Framework to ServiceApp, set Player to exteplayer3, press Green (Save), and restart Enigma2.



B. Install Xstreamity IPTV Player

For organizing Xtream Codes API provider playlists with posters and full EPG parsing:



wget https://raw.githubusercontent.com/KiddaC/Xstreamity/main/catchup/install.sh -O - | script -q -c "sh" /dev/null





C. Configure Softcams (OSCam / NCam)

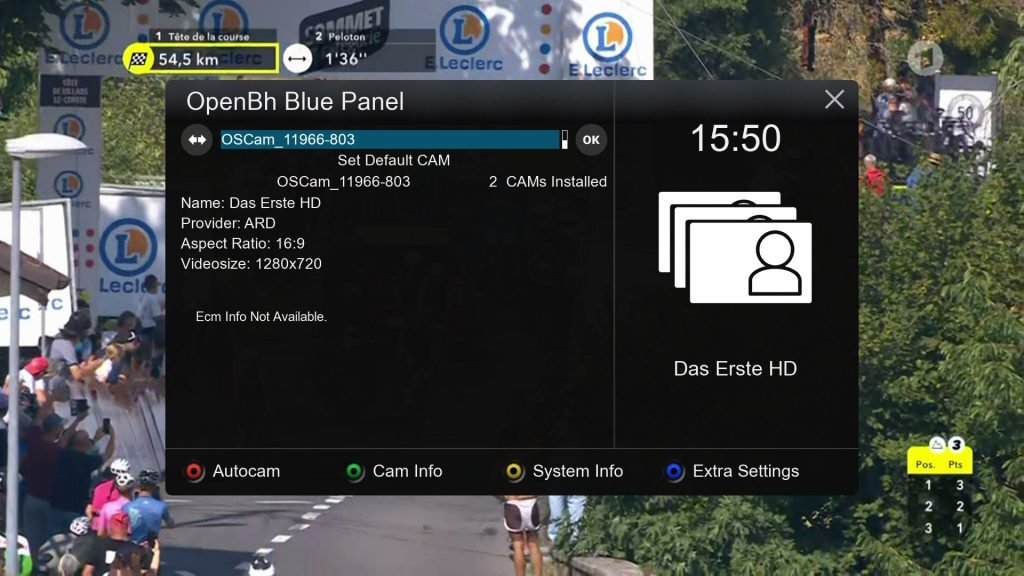

1. Download OSCam from Blue Panel > Softcam Manager > Download Softcams.

2. Transfer your subscription config files (oscam.server or ncam.server) via FTP to:

   /etc/tuxbox/config/

3. Restart the softcam inside Blue Panel > Softcam Manager and check Autostart on Boot.



Frequently Asked Questions (FAQ)

Q1: Can I upgrade online from OpenBH 5.3 to OpenBH 6.0?

A: No. Due to the core migration to Python 3 and new low-level system dependencies, an in-place software update will break package dependencies. A clean USB re-flash is mandatory.

Q2: What should I do if my Vu+ receiver ignores the USB drive on boot?

A: Ensure the USB drive is formatted as FAT32 with MBR partition tables (not GPT). Remove any extra external USB hard drives or tuners connected to other ports before turning on the power switch.

Q3: Where can I find Enigma2 crash logs if the UI encounters a Green Screen (GS)?

A: OpenBH 6.0 saves crash logs directly in /home/root/logs/ or /tmp/. You can open these files via FileZilla to inspect which plugin or skin component triggered the exception.
